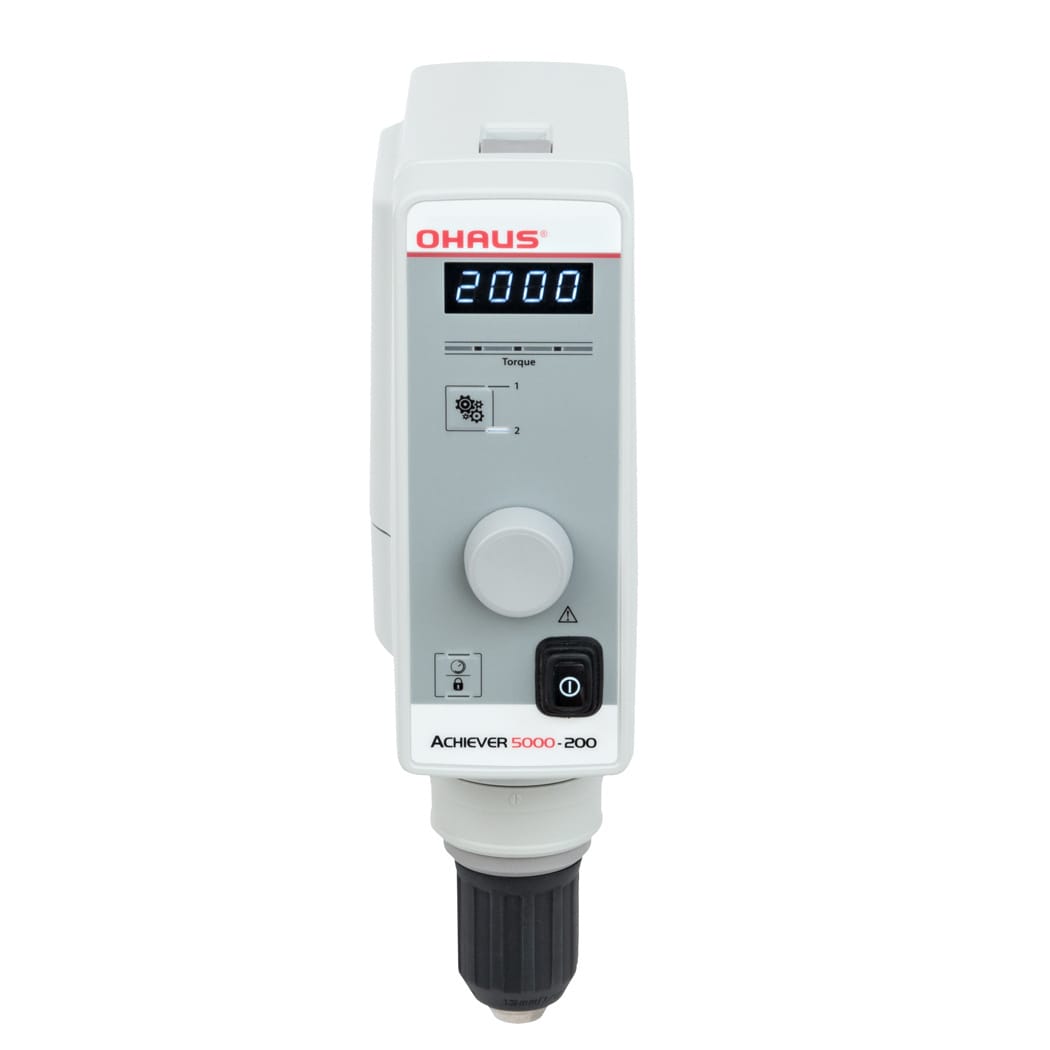

Achiever™ 5000 Overhead Stirrers
Product Details & Documents
Reliable overhead stirrers with excellent performance for everyday use.
- Powerful mixing and constant speed
- Simplify set up with the keyless chuck
- Designed for safety with lock button and overload sensor
- Compact and easy to use
OHAUS Achiever 5000™ Overhead Stirrers are designed for powerful, precise stirring, safety and simplicity in all applications. The sealed design has an IP 54 rating and ensures safe mixing performance even in the most demanding applications. The keyless chuck and software controlled speed ramping provide easy set up and safe stirring to protect the sample and user. Select from five models with up to 200 Ncm torque and up to 100 L volume capacity.
A new set up requires: an achiever unit, a support stand, a clamp to secure the unit to the stand, and the appropriate stirring shaft to suit the application.
Maximum stirring capacity 11 - 100 L.
Certifications: IP protection class according to DIN EN 60529: IP 54.
Specifications
- Description:Achiever 5000™ overhead stirrer, e-A51ST200, viscosity: 100000 mPa.s
- Dimensions:90×235×315 mm
- Electrical:230 V, 50/60 Hz
- Weight:4.6 kg
- Cat. No.:470353-918
- Permissible Ambient Temperature:5…40 °C
- Permissible Relative Humidity:80%
- Max. Torque:200 Ncm
- Speed range II:30 - 2000 rpm
- Model:e-A51ST200
- Speed Range:—
- Max. Stirring Capacity H₂O:100 L
- Speed range I:6 - 400 rpm
Accessories
Product Information
- Catalog #AvailabilityPrice
- Telescopic-H support stand
Product Information
- Catalog #AvailabilityPrice
- Universal-H support stand
Product Information
- Catalog #AvailabilityPrice
- Double clamp
Product Information
- Catalog #AvailabilityPrice
- Ribbon clamp
Product Information
- Catalog #AvailabilityPrice
- Folding blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 1000 cPFolding blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 1000 cP470353-894Log in for availabilityEach - $194.80
Product Information
- Catalog #AvailabilityPrice
- Anchor blade, 40×0.7 cm, speed range: all speeds, tangential flow, viscosity: 1000 - 100000 cPAnchor blade, 40×0.7 cm, speed range: all speeds, tangential flow, viscosity: 1000 - 100000 cP470353-908Log in for availabilityEach - $184.10
Product Information
- Catalog #AvailabilityPrice
- Fixed blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 10000 cPFixed blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 10000 cP470353-892Log in for availabilityEach - $184.10
Product Information
- Catalog #AvailabilityPrice
- Paddle 6 holes, 51×0.7 cm, speed range: upto 800 rpm, tangential flow, viscosity: 0 - 10000 cPPaddle 6 holes, 51×0.7 cm, speed range: upto 800 rpm, tangential flow, viscosity: 0 - 10000 cP470353-904Log in for availabilityEach - $194.80
Product Information
- Catalog #AvailabilityPrice
- Propeller, 40×0.7 cm, speed range: max. 250 rpm, axial flow, viscosity: 0 - 10000 cPPropeller, 40×0.7 cm, speed range: max. 250 rpm, axial flow, viscosity: 0 - 10000 cP470353-912Log in for availabilityEach - $194.80
Product Information
- Catalog #AvailabilityPrice
- Turbo propeller, 40×0.7 cm, speed range: max. 250 rpm, axial flow, viscosity: 1000 - 100000 cPTurbo propeller, 40×0.7 cm, speed range: max. 250 rpm, axial flow, viscosity: 1000 - 100000 cP470353-920Log in for availabilityEach - $336.30
Product Information
- Catalog #AvailabilityPrice
- Floating blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 1000 cPFloating blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 1000 cP470353-906Log in for availabilityEach - $194.80
Product Information
- Catalog #AvailabilityPrice
- Turbine, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 1000 - 100000 cPTurbine, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 1000 - 100000 cP470353-890Log in for availabilityEach - $336.30
Product Information
- Catalog #AvailabilityPrice
- Chuck cover
Product Information
- Catalog #AvailabilityPrice
- Power cable US
