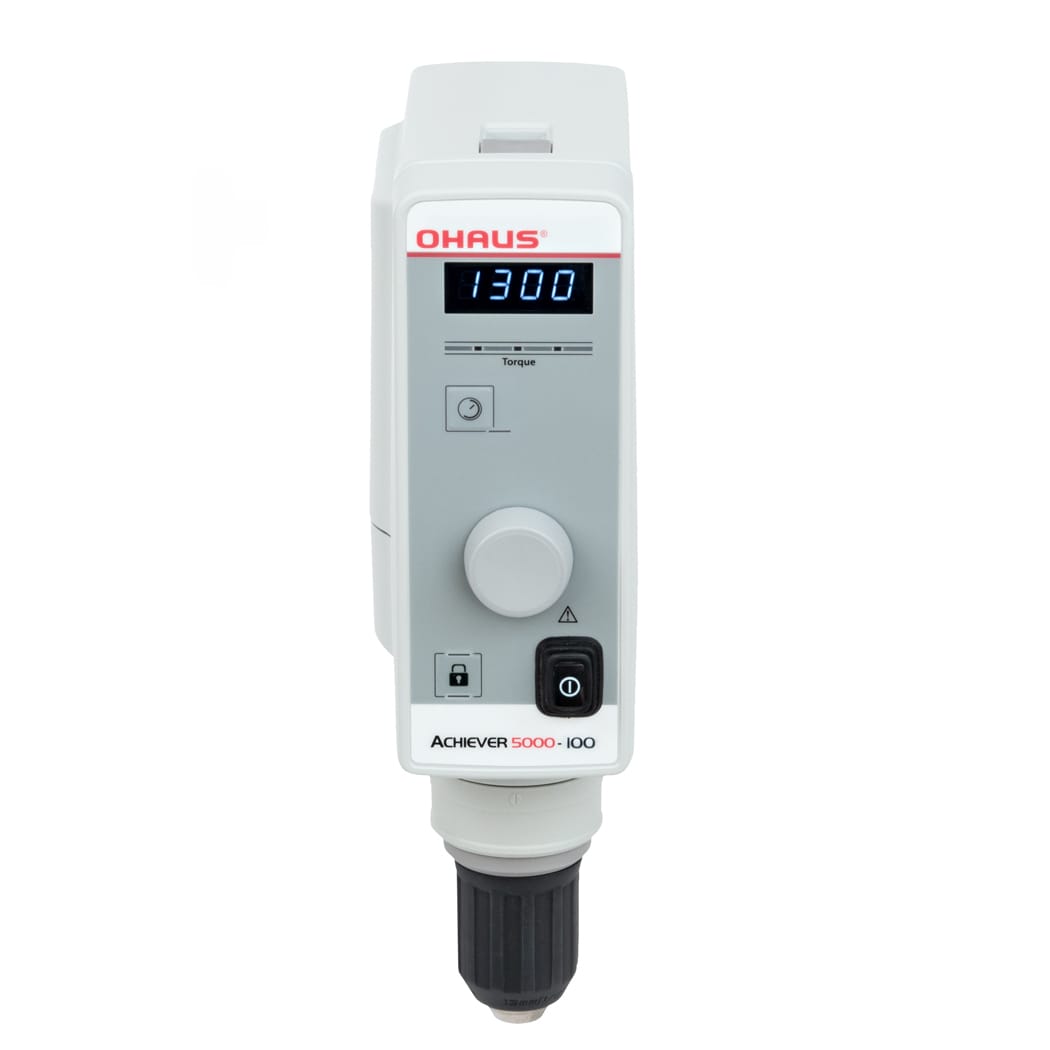

Achiever™ 5000 Overhead Stirrers
Product Details
Reliable overhead stirrers with excellent performance for everyday use.
- Powerful mixing and constant speed
- Simplify set up with the keyless chuck
- Designed for safety with lock button and overload sensor
- Compact and easy to use
OHAUS Achiever 5000™ Overhead Stirrers are designed for powerful, precise stirring, safety and simplicity in all applications. The sealed design has an IP 54 rating and ensures safe mixing performance even in the most demanding applications. The keyless chuck and software controlled speed ramping provide easy set up and safe stirring to protect the sample and user. Select from five models with up to 200 Ncm torque and up to 100 L volume capacity.
A new set up requires: an achiever unit, a support stand, a clamp to secure the unit to the stand, and the appropriate stirring shaft to suit the application.
Maximum stirring capacity 11 - 100 L.
Certifications: IP protection class according to DIN EN 60529: IP 54.
Specifications
- Description:Achiever 5000™ overhead stirrer, e-A51ST100, viscosity: 70000 mPa.s
- Dimensions:90×235×285 mm
- Electrical:230 V, 50/60 Hz
- Weight:4.1 kg
- Cat. No.:470353-884
- Permissible Ambient Temperature:5…40 °C
- Permissible Relative Humidity:80%
- Max. Torque:100 Ncm
- Speed range II:—
- Model:e-A51ST100
- Speed Range:30 - 1300 rpm
- Max. Stirring Capacity H₂O:100 L
- Speed range I:—
Accessories
Product Information
- AvailabilityPrice
- 470353-898Telescopic-H support stand
Product Information
- AvailabilityPrice
- 470353-910Universal-H support stand
Product Information
- AvailabilityPrice
- 470353-902Double clamp
Product Information
- AvailabilityPrice
- 470353-886Ribbon clamp
Product Information
- AvailabilityPrice
- 470353-894Folding blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 1000 cPFolding blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 1000 cPLog in for availability
Product Information
- AvailabilityPrice
- 470353-908Anchor blade, 40×0.7 cm, speed range: all speeds, tangential flow, viscosity: 1000 - 100000 cPAnchor blade, 40×0.7 cm, speed range: all speeds, tangential flow, viscosity: 1000 - 100000 cPLog in for availability
Product Information
- AvailabilityPrice
- 470353-892Fixed blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 10000 cPFixed blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 10000 cPLog in for availability
Product Information
- AvailabilityPrice
- 470353-904Paddle 6 holes, 51×0.7 cm, speed range: upto 800 rpm, tangential flow, viscosity: 0 - 10000 cPPaddle 6 holes, 51×0.7 cm, speed range: upto 800 rpm, tangential flow, viscosity: 0 - 10000 cPLog in for availability
Product Information
- AvailabilityPrice
- 470353-912Propeller, 40×0.7 cm, speed range: max. 250 rpm, axial flow, viscosity: 0 - 10000 cPPropeller, 40×0.7 cm, speed range: max. 250 rpm, axial flow, viscosity: 0 - 10000 cPLog in for availability
Product Information
- AvailabilityPrice
- 470353-920Turbo propeller, 40×0.7 cm, speed range: max. 250 rpm, axial flow, viscosity: 1000 - 100000 cPTurbo propeller, 40×0.7 cm, speed range: max. 250 rpm, axial flow, viscosity: 1000 - 100000 cPLog in for availability
Product Information
- AvailabilityPrice
- 470353-906Floating blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 1000 cPFloating blade, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 0 - 1000 cPLog in for availability
Product Information
- AvailabilityPrice
- 470353-890Turbine, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 1000 - 100000 cPTurbine, 40×0.7 cm, speed range: max. 250 rpm, radial flow, viscosity: 1000 - 100000 cPLog in for availability
Product Information
- AvailabilityPrice
- 470353-914Chuck cover
Product Information
- AvailabilityPrice
- 470353-896Power cable US
