Fischer Technical High Vacuum Pump

Fischer Technical High Vacuum Pump
 :  Fischer Technical
 Fischer Technical High Vacuum Pump
undefined
undefined

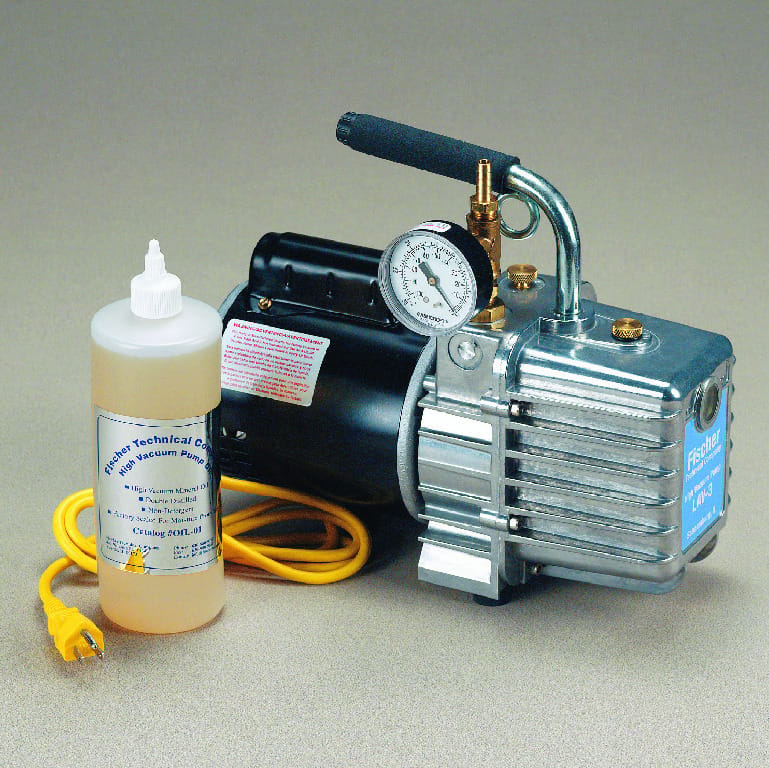

Fischer Technical High Vacuum Pump









Achieve impressive high-vacuum results with this cost effective laboratory pump.

  • Rotary vane-style vacuum pump
  • 70 dB operating noise level
  • Perfect for 'Bell in a Jar' and 'Guinea and Feather' experiments

These two-stage direct drive pumps are ideal for use in virtually all high vacuum applications. Our pumps are tested to 25 µm Hg (99% vacuum), but are suitable for all applications requiring a vacuum under 500 µm Hg.





  • Catalog No:
  • 470020-520
  • 470006-000
  • 470348-960
  • 470348-978
  • 470348-970
  • 470348-964
  • 470348-956
  • 470348-984
  • Motor:
  • ¹/₂ HP, 1725 rpm
  • ¹/₂ HP, 1725 rpm
  • ¹/₂ HP, 1725 rpm
  • ¹/₂ HP, 1725 rpm
  • ¹/₂ HP, 1725 rpm
  • ¹/₂ HP, 1725 rpm
  • ¹/₂ HP, 1725 rpm
  • Operating Temperature:
  • –1...+76 °C (30...170 °F)
  • –1...+76 °C (30...170 °F)
  • –1...+76 °C (30...170 °F)
  • –1...+76 °C (30...170 °F)
  • –1...+76 °C (30...170 °F)
  • –1...+76 °C (30...170 °F)
  • –1...+76 °C (30...170 °F)



Product Family Options



  • Description
    Connection
    Free air displacement
    Max. vacuum
    Weight


  • 470020-520
    LAV-3 High vacuum pump
    ³/₈'' hose barb (intake)
    85 L/min (3 CFM)
    0.025 mm Hg (99%), abs.
    30 lbs.


    Each
    Each - $1,311.90
    $1,311.90
    Each
       $1,311.90

     : LAV-3


    Specifications
    Cat. No.
    470020-520
    Motor
    ¹/₂ HP, 1725 rpm
    Operating Temperature
    –1...+76 °C (30...170 °F)
  • 470006-000
    LAV-3 High vacuum pump, with gauge.
    ³/₈'' hose barb (intake)
    85 L/min (3 CFM)
    0.025 mm Hg (99%), abs.
    30 lbs.


    Each
    Each - $1,397.85
    $1,397.85
    Each
       $1,397.85

     : LAV-3/G


    Specifications
    Cat. No.
    470006-000
    Motor
    Operating Temperature
  • 470348-960
    LAV-5 High vacuum pump
    ³/₈'' hose barb (intake)
    142 L/min (5 CFM)
    0.025 mm Hg (99%), abs.
    32 lbs.


    Each
    Each - $1,495.25
    $1,495.25
    Each
       $1,495.25
     : LAV-5


    Specifications
    Cat. No.
    470348-960
    Motor
    ¹/₂ HP, 1725 rpm
    Operating Temperature
    –1...+76 °C (30...170 °F)
  • 470348-978
    LAV-5 High vacuum pump, with gauge
    ³/₈'' hose barb (intake)
    142 L/min (5 CFM)
    0.025 mm Hg (99%), abs.
    32 lbs.


    Each
    Each - $1,609.20
    $1,609.20
    Each
       $1,609.20
     : LAV-5/G/220


    Specifications
    Cat. No.
    470348-978
    Motor
    ¹/₂ HP, 1725 rpm
    Operating Temperature
    –1...+76 °C (30...170 °F)
  • 470348-970
    LAV-7 High vacuum pump
    ¹/₂'' hose barb (intake)
    200 L/min (7 CFM)
    0.025 mm Hg (99%), abs.
    32 lbs.


    Each
    Each - $1,618.55
    $1,618.55
    Each
       $1,618.55
     : LAV-7


    Specifications
    Cat. No.
    470348-970
    Motor
    ¹/₂ HP, 1725 rpm
    Operating Temperature
    –1...+76 °C (30...170 °F)
  • 470348-964
    LAV-7 High vacuum pump, with gauge
    ¹/₂'' hose barb (intake)
    200 L/min (7 CFM)
    0.025 mm Hg (99%), abs.
    32 lbs.


    Each
    Each - $1,704.30
    $1,704.30
    Each
       $1,704.30
     : LAV-7/G


    Specifications
    Cat. No.
    470348-964
    Motor
    ¹/₂ HP, 1725 rpm
    Operating Temperature
    –1...+76 °C (30...170 °F)
  • 470348-956
    LAV-10 High vacuum pump
    ¹/₂'' hose barb (intake)
    285 L/min (10 CFM)
    0.025 mm Hg (99%), abs.
    36 lbs.


    Each
    Each - $1,918.95
    $1,918.95
    Each
       $1,918.95
     : LAV-10


    Specifications
    Cat. No.
    470348-956
    Motor
    ¹/₂ HP, 1725 rpm
    Operating Temperature
    –1...+76 °C (30...170 °F)
  • 470348-984
    LAV-10 High vacuum pump, with gauge
    ¹/₂'' hose barb (intake)
    285 L/min (10 CFM)
    0.025 mm Hg (99%), abs.
    36 lbs.


    Each
    Each - $2,004.80
    $2,004.80
    Each
       $2,004.80
     : LAV-10/G


    Specifications
    Cat. No.
    470348-984
    Motor
    ¹/₂ HP, 1725 rpm
    Operating Temperature
    –1...+76 °C (30...170 °F)
Accessories



  •
    Description


  • 470164-238
    High vacuum exhaust filter

    Each - $59.50



  •
    Description


  • 470316-940
    Glass bell jar with knob, 6×11"

    Each - $193.85



  •
    Description


  • 470316-942
    High vacuum shut off and vacuum release

    Each - $110.35



  •
    Description


  • 470316-944
    Deluxe classroom vacuum kit, without pump

    Each - $473.60



  •
    Description


  • 470316-946
    Tube of high vacuum grease, 4 oz.

    Each - $55.20



  •
    Description


  • 470317-012
    Vacuum pump oil draining tank

    Each - $84.80



  •
    Description


  • 470316-950
    Glass bell jar with knob, 8.5×15"

    Each - $422.89



  •
    Description


  • 470317-014
    High vacuum hand held digital gauge

    Each - $480.00



  •
    Description


  • 470317-016
    In line vacuum gauge with two 3/8 barbs

    Each - $92.80



  •
    Description


  • 470316-938
    Glass bell jar with knob, 5×9"

    Each - $161.80



  •
    Description


  • 470316-948
    High vacuum in line filter

    Each - $87.85



  •
    Description


  • 470317-018
    Vacuum gauge and fittings to add to LAV

    Each - $86.90
