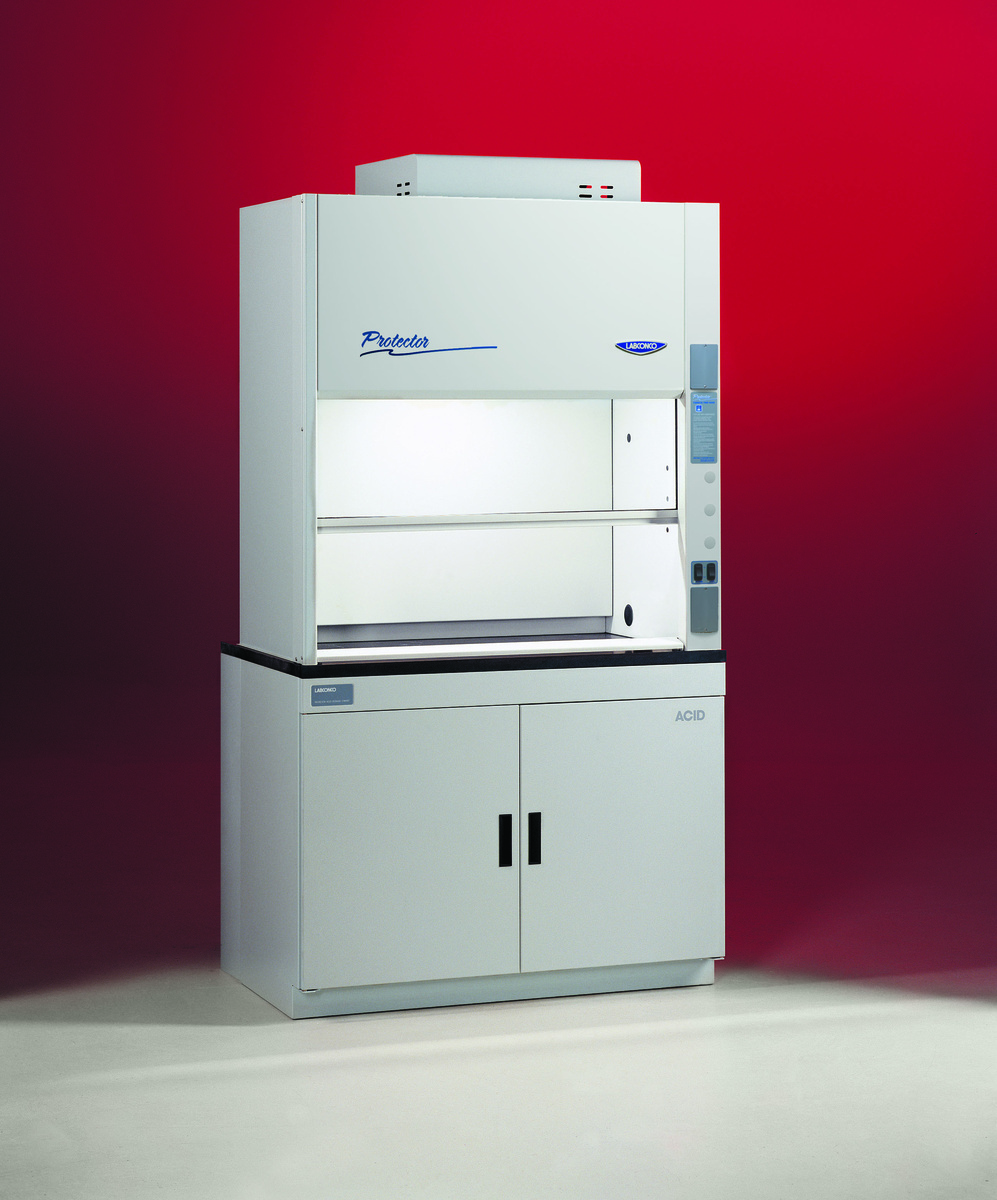

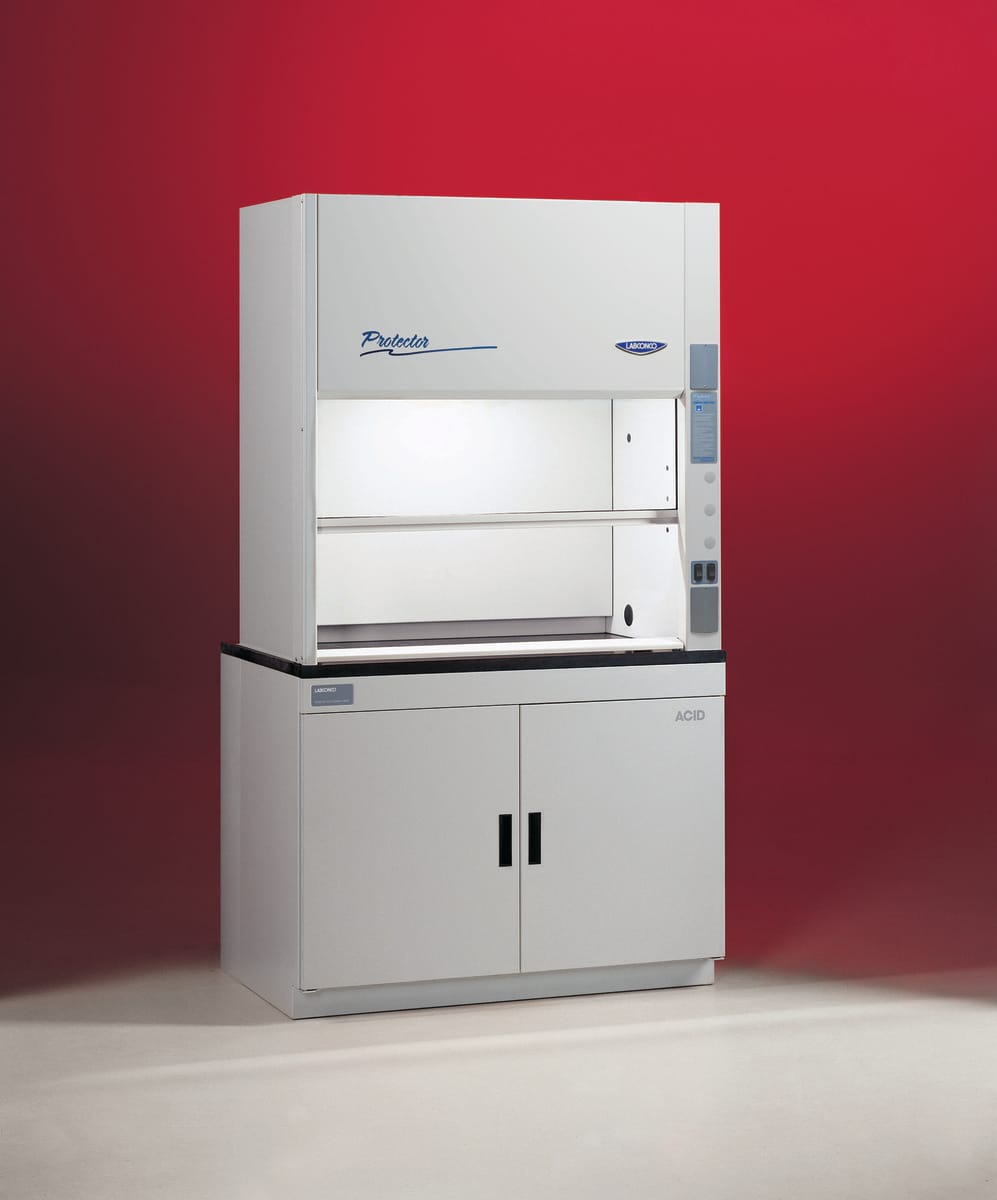

Basic™ 47 and Basic 70 Laboratory Hoods, Labconco®

The Basic™ hood is ideal for rooms with ceilings below 2.4 m, 8" and for shallow countertops.

• Blowers Available
• Safety Glass
• Steel Construction
• Vapor-Proof, Incandescent Light Fixture

The hood is furnished with a 0.5 cm (³/₁₆") thick safety glass and a 25.4 cm (10") dia

The hood is available with or without a blower, which can be mounted in or above the hood or on the roof. A 1/3 hp motor is included with Basic 47 hoods that have a blower (except 30152-610 and 612, which have a 1/2 hp motor). Basic 70 hoods with a blower have a 3/4 hp motor.

duct collar. The interior and exterior are constructed of glacier-white, epoxy-coated, 16-gauge steel. The hood includes a removable front panel, a removable air foil, a two-piece adjustable baffle, and a vapor-proof, incandescent light fixture. The right-side fixture panel is factory prepared to accept up to three service fixtures, one duplex electrical receptacle, and a Guardian air monitor. The right, interior side wall is factory prepared for one wall-mounted cup sink with a turret, and the hood liner top is constructed for two customer-supplied apparatus rods.

Certifications: The 115V models are ETL and ETL-C listed; 230V models are CE marked.

Ordering information: A work surface and base cabinet or stand are required for operation (all sold separately). A service fixture, receptacle, Guardian monitor, cup sink, and turret kits are also available. For unassembled Basic hoods, please contact your Avantor sales representative. Switches, electrical wiring, and connections are not included with explosion-proof units. Wiring and switches must be added after installation. Field-installed electrical wiring of explosion-proof units is not provided.

Services: VWRCATALYST™ offers customer on-site validation, testing, and certification services including Face Velocity Profile Test, Smoke Generation Test, Tracer Gas Test, IQ, OQ, and PQ. Please call 888-793-2300 or email VWR[email protected] for more details. You can also visit https://vwr.com/equip_services.
