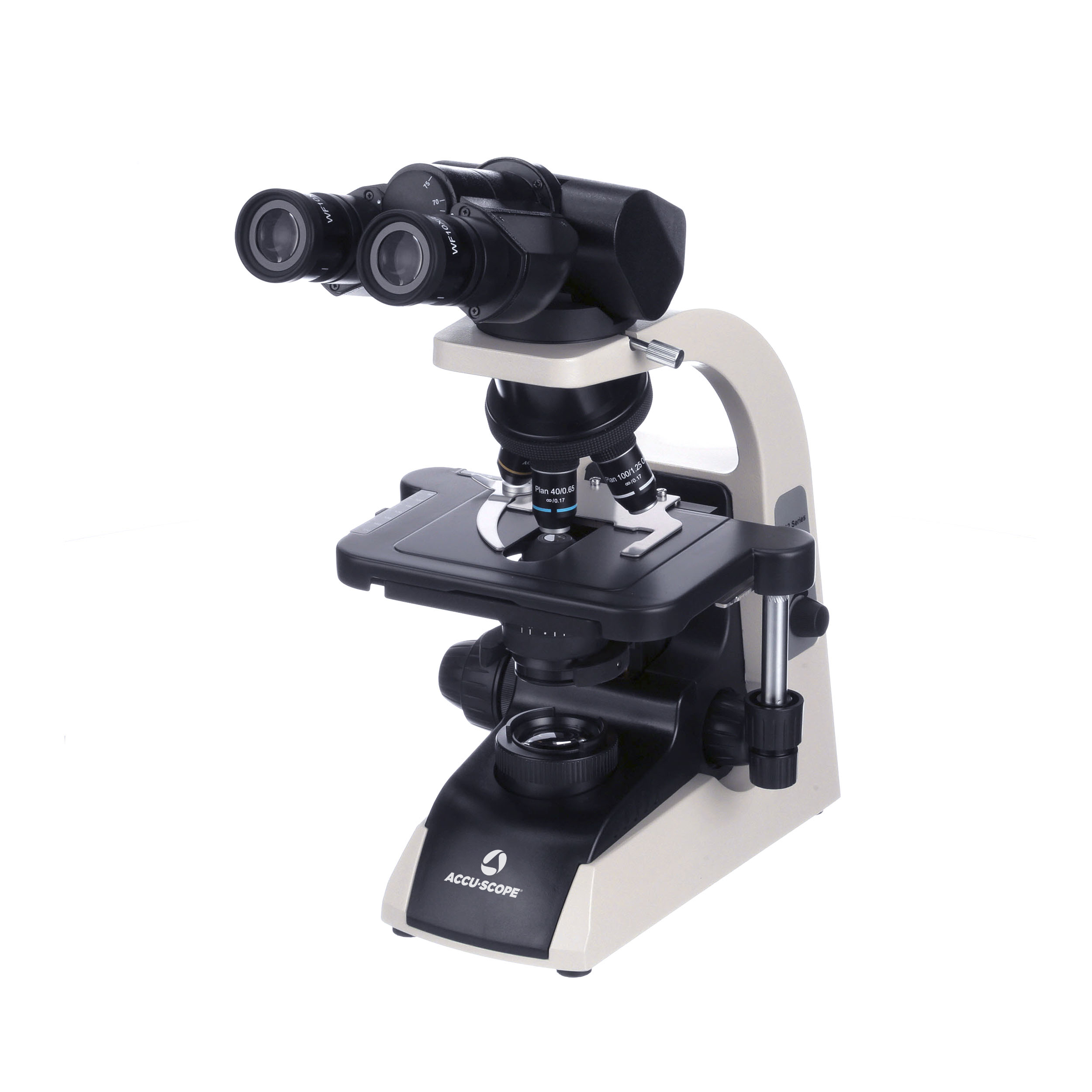

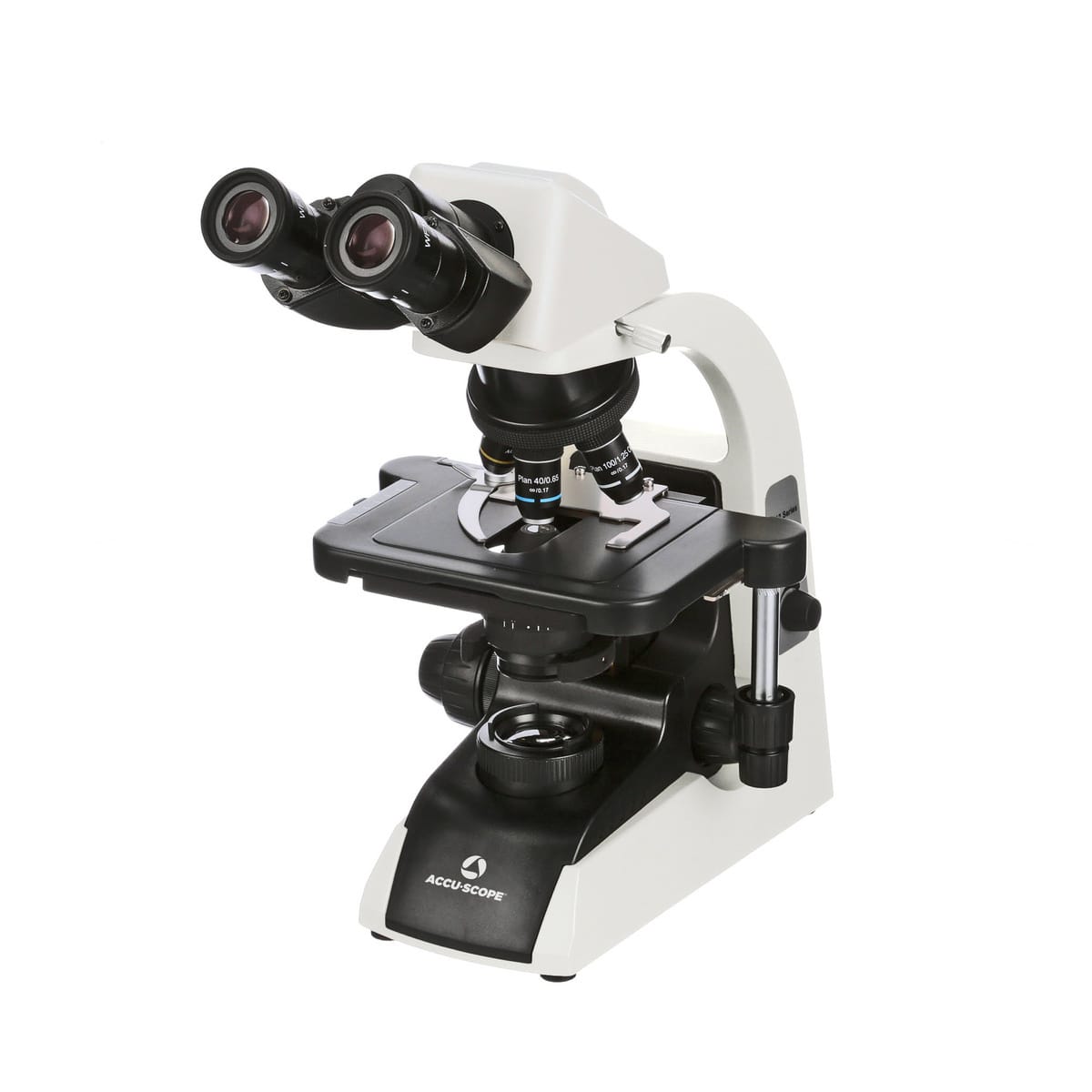

ACCU-SCOPE® 3012 Upright Microscopes
About this item
Economical, high-quality alternative for today’s budget-conscious world.
- Binocular, trinocular, or binocular ergonomic viewing head
- Head Inclined 30°, rotatable 360°
- WF10×/22 mm focusing eyepieces with eye guards
- Reversed quintuple nosepiece
- AIS E Plan Infinity 4×, 10×, 40×R and 100×R oil objectives
- Rackless mechanical stage with low position coaxial controls
The 3012 series features our E-Plan Achromat Infinity objectives which are renowned for crisp, high contrast images with outstanding resolution. With 22 mm field of view eyepieces and an eyepoint height that is adjustable, it can be raised 35 mm by rotating the eyepiece tubes up 180° to accommodate the needs of various users. The modular design of the 3012 allows options for entry level fluorescence applications, phase contrast, darkfield and simple polarization.
3 Options Available Below
Product Details & Documents
Economical, high-quality alternative for today’s budget-conscious world.
- Binocular, trinocular, or binocular ergonomic viewing head
- Head Inclined 30°, rotatable 360°
- WF10×/22 mm focusing eyepieces with eye guards
- Reversed quintuple nosepiece
- AIS E Plan Infinity 4×, 10×, 40×R and 100×R oil objectives
- Rackless mechanical stage with low position coaxial controls
The 3012 series features our E-Plan Achromat Infinity objectives which are renowned for crisp, high contrast images with outstanding resolution. With 22 mm field of view eyepieces and an eyepoint height that is adjustable, it can be raised 35 mm by rotating the eyepiece tubes up 180° to accommodate the needs of various users. The modular design of the 3012 allows options for entry level fluorescence applications, phase contrast, darkfield and simple polarization.
Documents
Specifications for Product Family
Specifications
- Catalog No:
- 470351-208
- 470351-266
- 470351-268
- 470351-210
- 470351-236
- Type:
- Binocular
- Binocular
- Binocular
- Binocular
- Binocular
- Contrasting Technique:
- Brightfield
- Brightfield
- Brightfield
- Brightfield
- Brightfield
- Stage:
- Rackless mechanical
- Rackless mechanical
- Rackless mechanical
- Rackless mechanical
- Rackless mechanical
- Illumination:
- LED
- LED
- LED
- LED
- LED
Specifications
Product Family Options
Product Information
- MagnificationAvailabilityPrice
- 470351-208Binocular microscope 3 plan achromat objectivesBinocular microscope 3 plan achromat objectives4×, 10×, 40×Discontinued-Supplier Number: 3012-LED-3Specifications:
More
Specifications
Cat. No.470351-208TypeBinocularContrasting TechniqueBrightfieldStageRackless mechanicalIlluminationLED - 470351-266Ergo binocular microscope with 3 plan achromat objectivesErgo binocular microscope with 3 plan achromat objectives4×, 10×, 40×Discontinued-Supplier Number: 3012-LED-3BESpecifications:
More
Specifications
Cat. No.470351-266TypeBinocularContrasting TechniqueBrightfieldStageRackless mechanicalIlluminationLED - 470351-268Binocular microscope with plan achromat objectivesBinocular microscope with plan achromat objectives4×, 10×, 40×, 100×Log in for availabilityEach$3,421.65Supplier Number: 3012-LEDSpecifications:
More
Specifications
Cat. No.470351-268TypeBinocularContrasting TechniqueBrightfieldStageRackless mechanicalIlluminationLED - 470351-210Ergo binocular microscope with plan achromat objectivesErgo binocular microscope with plan achromat objectives4×, 10×, 40×, 100×Log in for availabilityEach$4,563.90Supplier Number: 3012-LED-BESpecifications:
More
Specifications
Cat. No.470351-210TypeBinocularContrasting TechniqueBrightfieldStageRackless mechanicalIlluminationLED - 470351-236Trinocular microscope with plan achromat objectivesTrinocular microscope with plan achromat objectives4×, 10×, 40×, 100×Log in for availabilityEach$3,878.50Supplier Number: 3013-LEDSpecifications:
More
Specifications
Cat. No.470351-236TypeBinocularContrasting TechniqueBrightfieldStageRackless mechanicalIlluminationLED
