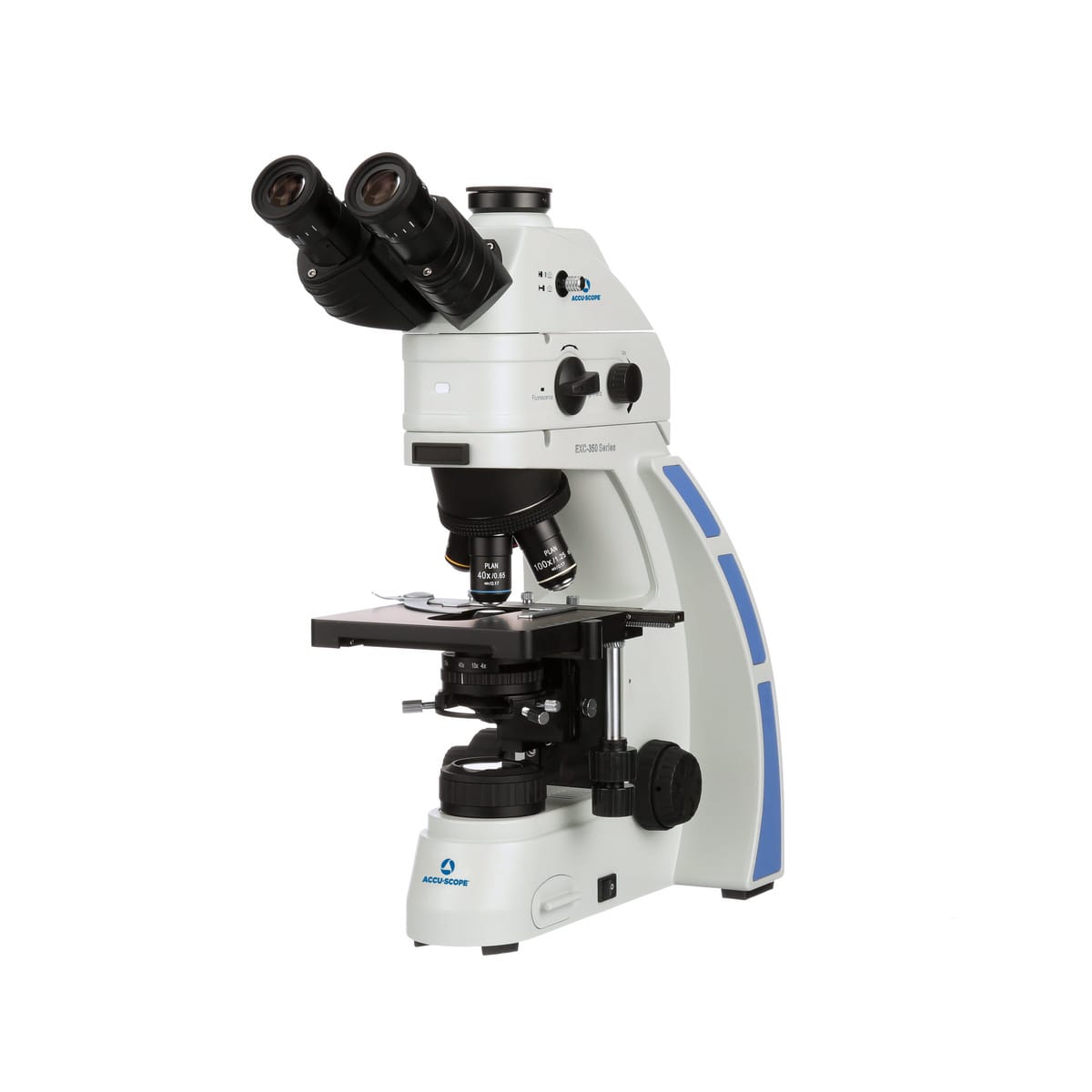

ACCU-SCOPE® EXC-350 Upright Microscopes
About this item
Delivers a high level of optical performance, versatility and durability for clinical, veterinary and education laboratory environments.
- Trinocular viewing head
- Digital microscope options
- Infinity corrected
- Inclined 30°
- Optional fluorescence observation
- 3 W LED with Variable Intensity Control
- PL10×/20 mm focusable eyepiece with diopter for ease of use for the visually impaired
- Reversed quintuple nosepiece with space to add objectives
- Infinity corrected PLAN 4×, 10×, 40×R and 100×R oil objectives
- Mechanical stage with low position coaxial controls, right hand control
With our infinity plan objectives and brilliant LED illumination, the EXC-350 produces bright, crisp, and sharp images. The trinocular port is ready to accept a microscopy camera (requires c-mount camera adapter) for documentation, analysis, and instructional purposes. The EXC-350 is available with an optional 1, 2, or 3-channel fluorescence accessory with integrated LED illumination. Applications for fluorescence observation include immunostaining, fungus and bacteria identification, nucleic acids and genetics, and protein localization.
Product Details
Delivers a high level of optical performance, versatility and durability for clinical, veterinary and education laboratory environments.
- Trinocular viewing head
- Digital microscope options
- Infinity corrected
- Inclined 30°
- Optional fluorescence observation
- 3 W LED with Variable Intensity Control
- PL10×/20 mm focusable eyepiece with diopter for ease of use for the visually impaired
- Reversed quintuple nosepiece with space to add objectives
- Infinity corrected PLAN 4×, 10×, 40×R and 100×R oil objectives
- Mechanical stage with low position coaxial controls, right hand control
With our infinity plan objectives and brilliant LED illumination, the EXC-350 produces bright, crisp, and sharp images. The trinocular port is ready to accept a microscopy camera (requires c-mount camera adapter) for documentation, analysis, and instructional purposes. The EXC-350 is available with an optional 1, 2, or 3-channel fluorescence accessory with integrated LED illumination. Applications for fluorescence observation include immunostaining, fungus and bacteria identification, nucleic acids and genetics, and protein localization.
Documents
Documents
ACCU-SCOPE® EXC-350 Series Upright Microscopes
Product Literature
Specifications for Product Family
Specifications
- Catalog No:
- 470351-118
- 470351-224
- 470351-230
- 470351-150
- 470351-176
- 470351-212
- 470351-078
- 470351-112
- Model:
- EXC-350
- EXC-350-SAPO
- EXC-350-PHDF
- EXC-350-PH
- EXC-350-HDS
- EXC-350-HDSLT
- EXC-350-SPH
- EXC-350-470
- Type:
- Trinocular
- Trinocular
- Trinocular
- Trinocular
- Trinocular
- Trinocular
- Trinocular
- Trinocular
- Contrasting Technique:
- Brightfield
- Brightfield
- Brightfield and Phase Contrast
- Brightfield and Phase Contrast
- Brightfield
- Brightfield
- Brightfield and Phase Contrast
- Fluorescence
- Stage:
- Mechanical
- Mechanical
- Mechanical
- Mechanical
- Mechanical
- Mechanical
- Mechanical
- Mechanical
- Illumination:
- LED
- LED
- LED
- LED
- LED
- LED
- LED
- LED
Specifications
Catalog No | Model | EXC-350 | EXC-350-SAPO | EXC-350-PHDF | EXC-350-PH | EXC-350-HDS | EXC-350-HDSLT | EXC-350-SPH | EXC-350-470 | Type | Trinocular | Trinocular | Trinocular | Trinocular | Trinocular | Trinocular | Trinocular | Trinocular | Contrasting Technique | Brightfield | Brightfield | Brightfield and Phase Contrast | Brightfield and Phase Contrast | Brightfield | Brightfield | Brightfield and Phase Contrast | Fluorescence | Stage | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Illumination | LED | LED | LED | LED | LED | LED | LED | LED |
|---|
Product Family Options
Product Information
- ModelMagnificationCameraIncludesAvailabilityPrice
- 470351-118Infinity plan trinocular microscopeEXC-3504×, 10×, 40×R, 100×RWithout camera—Direct from SupplierEach$2,311.00 / EachDirect from Supplier$2,311.00Each$2,311.00EXC-3504×, 10×, 40×R, 100×RWithout camera—Supplier Number: EXC-350Specifications:
More
- 470351-224Infinity S-plan trinocular microscopeEXC-350-SAPO4×, 10×, 40×R, 100×RWithout camera—Direct from SupplierEach$5,443.00 / EachDirect from Supplier$5,443.00Each$5,443.00EXC-350-SAPO4×, 10×, 40×R, 100×RWithout camera—Supplier Number: EXC-350-SAPOSpecifications:
More
- 470351-230Infinity plan darkfield trinocular microscope with phase contrastEXC-350-PHDFBF, DF, 10×, 40×, 100×Without camera—Direct from SupplierEach$3,220.00 / EachDirect from Supplier$3,220.00Each$3,220.00EXC-350-PHDFBF, DF, 10×, 40×, 100×Without camera—Supplier Number: EXC-350-PHDFSpecifications:
More
- 470351-150Infinity plan trinocular microscope with phase contrastEXC-350-PH10×, 20×, 40×, 100×Without camera—Direct from SupplierEach$3,329.00 / EachDirect from Supplier$3,329.00Each$3,329.00EXC-350-PH10×, 20×, 40×, 100×Without camera—Supplier Number: EXC-350-PHSpecifications:
More
- 470351-176Infinity plan trinocular microscope with tabletEXC-350-HDS4×, 10×, 40×R, 100×RExcelis™ HDS—Direct from SupplierEach$3,799.00 / EachDirect from Supplier$3,799.00Each$3,799.00EXC-350-HDS4×, 10×, 40×R, 100×RExcelis™ HDS—Supplier Number: EXC-350-HDSSpecifications:
More
- 470351-212Infinity plan trinocular microscope with tabletEXC-350-HDSLT4×, 10×, 40×R, 100×RExcelis™ HDS Lite—Direct from SupplierEach$3,263.00 / EachDirect from Supplier$3,263.00Each$3,263.00EXC-350-HDSLT4×, 10×, 40×R, 100×RExcelis™ HDS Lite—Supplier Number: EXC-350-HDSLTSpecifications:
More
- 470351-078Infinity plan trinocular microscope with tabletEXC-350-SPH4×, 10×, 40×R, 100×RExcelis™ HDS Lite—Direct from SupplierEach$2,543.00 / EachDirect from Supplier$2,543.00Each$2,543.00EXC-350-SPH4×, 10×, 40×R, 100×RExcelis™ HDS Lite—Supplier Number: EXC-350-SPHSpecifications:
More
- 470351-112Infinity plan trinocular fluorescence microscopeEXC-350-4704×, 10×, 40×R, 100×RWithout cameraFITC/GFP (470 nm)Direct from SupplierEach$5,526.00 / EachDirect from Supplier$5,526.00Each$5,526.00EXC-350-4704×, 10×, 40×R, 100×RWithout cameraFITC/GFP (470 nm)Supplier Number: EXC-350-470Specifications:
More
