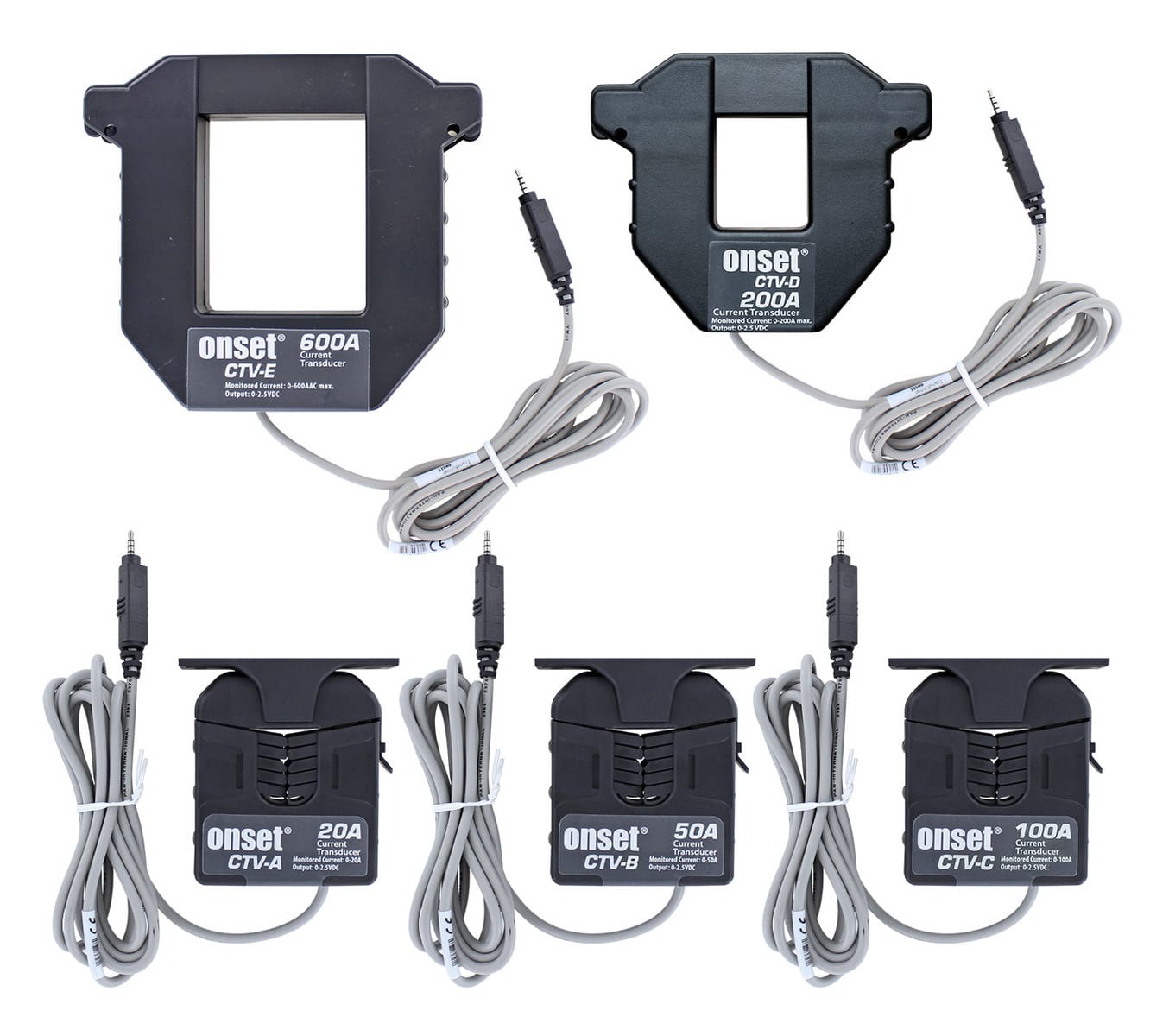

HOBO® Data Loggers Self-Describing Current Transformer Sensor
About this item
Current sensor with Self-Describing technology for quick, easy set up.
- Locking jack to ensure sensor is connected and stays connected
- Available in 5 ranges: 2 ro 20, 5 to 50, 10 to 100, 20 to 200 and 60 to 600
- Accuracy of ±2.1% of full scale from 10 to 100%
- AC current, sine wave, single-phase 50 or 60 Hz
- Load power factor 0.5 to 1.0 lead or lag
- 1.8 m (6') cable length
For use with HOBO MX1104 and MX1105 multi-channel data loggers, this split-core AC current transformer offers integrated strain relief, so the probe is secured to the logger. It features Self-Describing technology to automatically communicate configuration information to the logger, without any programming or extensive user setup.
Certifications: UL listed.
Product Details
Current sensor with Self-Describing technology for quick, easy set up.
- Locking jack to ensure sensor is connected and stays connected
- Available in 5 ranges: 2 ro 20, 5 to 50, 10 to 100, 20 to 200 and 60 to 600
- Accuracy of ±2.1% of full scale from 10 to 100%
- AC current, sine wave, single-phase 50 or 60 Hz
- Load power factor 0.5 to 1.0 lead or lag
- 1.8 m (6') cable length
For use with HOBO MX1104 and MX1105 multi-channel data loggers, this split-core AC current transformer offers integrated strain relief, so the probe is secured to the logger. It features Self-Describing technology to automatically communicate configuration information to the logger, without any programming or extensive user setup.
Certifications: UL listed.
Product Family Options
Product Information
- RangeAccuracyAvailabilityPrice
- 470336-304Self-describing current transformer sensor, 440 ms response time2 - 20 A±2.1% of full scaleSupplier Number: SD-CT-020Specifications:
More
- 470336-306Self-describing current transformer sensor, 200 ms response time5 - 50 A±2.1% of full scaleSupplier Number: SD-CT-050Specifications:
More
- 470336-308Self-describing current transformer sensor, 100 ms response time10 - 100 A±2.1% of full scaleSupplier Number: SD-CT-100Specifications:
More
- 470336-310Self-describing current transformer sensor, 450 ms response time20 - 200 A±2.1% of full scaleSupplier Number: SD-CT-200Specifications:
More
- 470336-312Self-describing current transformer sensor, 490 ms response time60 - 600 A±2.1% of full scaleSupplier Number: SD-CT-600Specifications:
More
