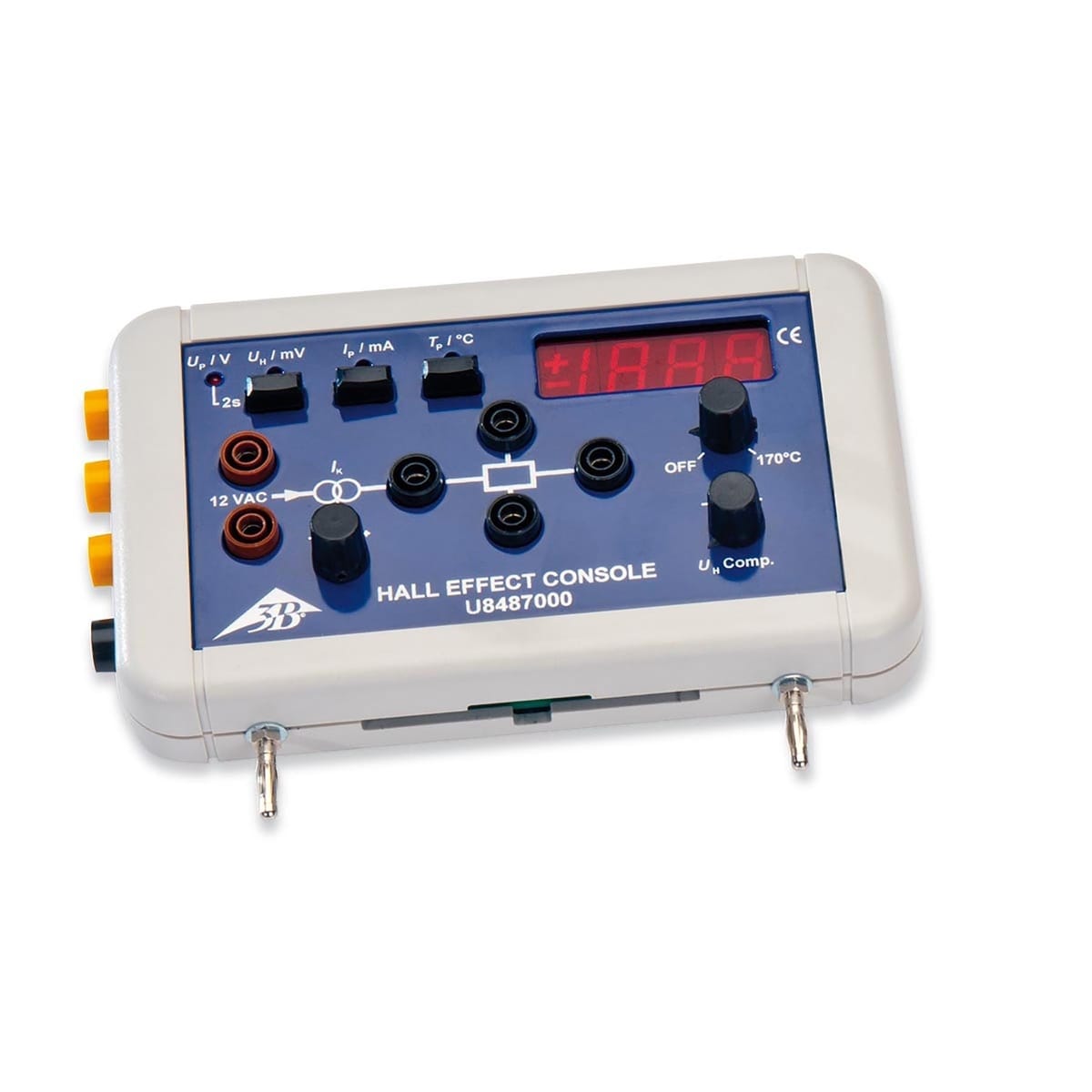

3B Scientific® Hall Effect Apparatus

Basic apparatus for providing contact, power supply and support to a germanium crystal on a circuit board in experiments on the Hall effect or on conductivity. Includes an integrated, adjustable constant current source to provide the current through the sample, a measuring amplifier with offset compensation for Hall voltages and heating to raise the crystal to as high as 170 °C, also featuring temperature regulation and a switchable display showing Hall voltage, sample current, sample voltage or temperature.

Hall voltage and sample voltage can be tapped directly from the front panel. In addition three equivalent voltage outputs for Hall voltage, sample current and sample temperature can be measured from the side. Includes an attachment for assembling the apparatus on the U-shaped core of a transformer assembly kit and two connecting leads with eight-pin miniDIN plugs.
