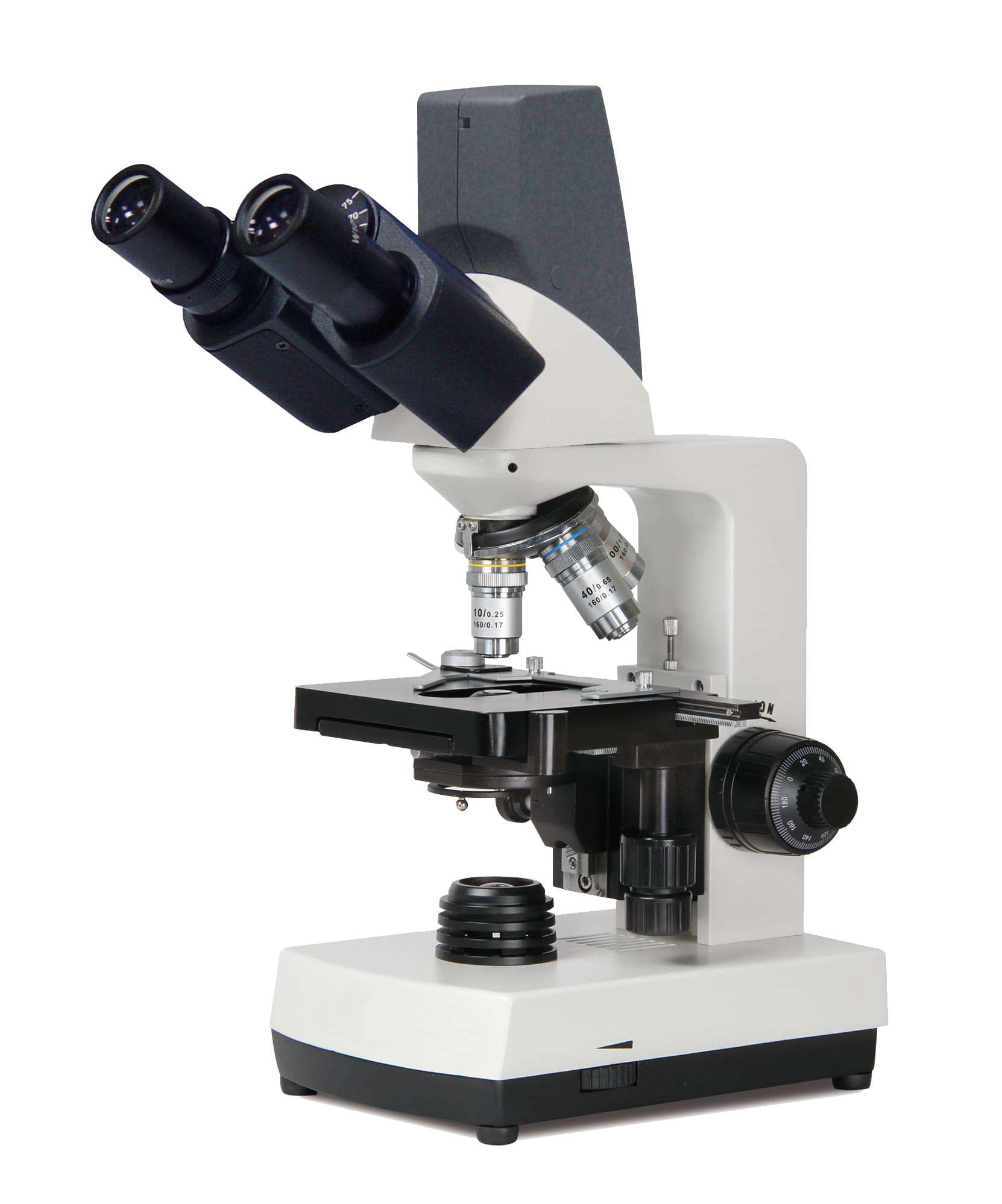

Ecoline Series Microscopes, National Optical & Scientific SE

These Ecoline Series Microscopes deliver excellent clarity with standard achromatic lenses and normal flatness of field.

DIN standard 4×(0.10 N.A.), 10×(0.25 N.A.), 40×R(0.65 N.A.) and 100×R oil immersion (1.25 N.A.) color-coded objectives.

Focusing: Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.

Low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls.

Frame: Rugged cast aluminum, gray enamel finish; Base dimensions: 140×210 mm (5¹/₂×8¹/₄)"; Height: 350 mm (13³/₄)".

Packaging: Molded styrofoam container with vinyl dustcover.

Price

$582.98–$935.55

3 options available below

These Ecoline Series Microscopes deliver excellent clarity with standard achromatic lenses and normal flatness of field.

DIN standard 4×(0.10 N.A.), 10×(0.25 N.A.), 40×R(0.65 N.A.) and 100×R oil immersion (1.25 N.A.) color-coded objectives.

Focusing: Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.

Low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls.

Frame: Rugged cast aluminum, gray enamel finish; Base dimensions: 140×210 mm (5¹/₂×8¹/₄)"; Height: 350 mm (13³/₄)".

Packaging: Molded styrofoam container with vinyl dustcover.

Specifications

Catalog No	7	7	7
Model	D-ELM	D-ELB	D-ELDB
Head	30° Inclined, 360° Rotating	30° Inclined, 360° Rotating	30° Inclined, 360° Rotating
Eyepieces	10×/18 mm	10×/18 mm	10×/18 mm
Stage	Mechanical, 115×125 mm (4¹³/₂₅×5)"	Mechanical, 115×125 mm (4¹³/₂₅×5)"	Mechanical, 115×125 mm (4¹³/₂₅×5)"
Condenser	1.25 N.A. Abbe	1.25 N.A. Abbe	1.25 N.A. Abbe
Illumination	Corded LED	Corded LED	Corded LED
Camera	–	–	3.0 MP
Electrical	110 – 220 V	110 – 220 V	110 – 220 V
