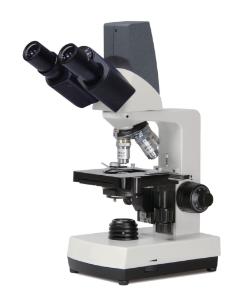

Ecoline Series Microscopes, National Optical & Scientific SE

Ecoline
D-ELB D-ELDB D-ELM
These Ecoline Series Microscopes deliver excellent clarity with standard achromatic lenses and normal flatness of field.

  • Widefield eyepieces
  • Quad objective turret
  • 3.4 V 0.06 watt LED
  • 4.5 V DC auto switch power adapter
DIN standard 4×(0.10 N.A.), 10×(0.25 N.A.), 40×R(0.65 N.A.) and 100×R oil immersion (1.25 N.A.) color-coded objectives.

Focusing: Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.

Low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls.

Frame: Rugged cast aluminum, gray enamel finish; Base dimensions: 140×210 mm (51/2×81/4)"; Height: 350 mm (133/4)".


Packaging: Molded styrofoam container with vinyl dustcover.





ORDER

Item # Description Electrical Model Unit Availability Price Quantity
470303-742 Monocular Corded LED Microscope
110 – 220 V D-ELM Each Retrieving
470303-744 Binocular Corded LED Microscope
110 – 220 V D-ELB Each Retrieving
470303-746 Digital Binocular Microscope
110 – 220 V D-ELDB Each Retrieving

SPECIFICATIONS

Model D-ELB D-ELM D-ELDB
Eyepieces 10×/18
Head 30° Inclined, 360° Rotating
Condenser 1.25 N.A. Abbe
Magnification Binocular Monocular Binocular
Illumination Corded LED
Stage Mechanical, 115×125 mm (413/25×5)"
Camera 3.0 MP
