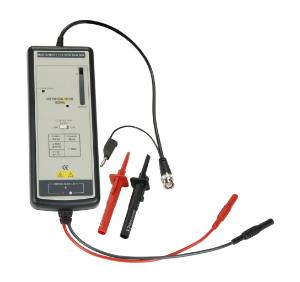

Differential Probe Kit, 70 MHz 100x/1000x HV w/Probes and PS, CAL TEST ELECTRONICS SE

High voltage differential probes for measurements up to 7,000 V and bandwidths to 70 MHz. Powered by 4 AA batteries or optional 6 V DC mains adapter.

Applications include:
Precise power semiconductor device measurements
Switching power supply design
Precise measurement of power converters
Precise measurement of motor drived

Features:
Up to ±700 V / ±7,000 V differential
70 MHz bandwidth (-3 dB)
High accuracy ±2%
High CMRR
Accessories: Spring loaded hook probes, 4 AA batteries, manual

Input Voltage:

Differential Voltage (DC+Peak AC): ±700 V/±7000 V

Common-Mode Voltage (DC+Peak AC): ±7000 V or 2500 Vrms

Absolute Max. Voltage (DC+Peak AC): ±7000 V or 2500 Vrms

Output Voltage:

Swing: ±7 V (into 50 kΩ load)

Offset (Typ.): ±5 mV

Noise (Typ.): 0.9 mVrms

Source Impedance (Typ.): 50 kΩ

CMRR (Typ.): -80 [email protected] Hz; -60 [email protected] kHz

Operating Temperature/Humidity: -10° to +40° C / 25% to 85% RH

Storage Temperature/Humidity: -30° to +70° C / 25% to 85% RH

Cable Length: 90 cm

Input Leads Length: 60 cm

Weight: 500 g

Dimensions: 202mm x 83mm x 38mm

RoHS (2002/95/EC)

Compliant
