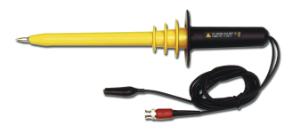

HV Oprobe, 10kV, 50MHz - 2.0m, BNC(m)

Ratings: (No Reviews)

Total Ratings: 0
Avg. Ratings: 0.0 out of 5

CT2982
470095-184EA 269.99 USD
470095-184
HV Oprobe, 10kV, 50MHz - 2.0m, BNC(m)
Electrical Meters Digital Multimeters
High voltage probe allows a standard oscilloscope to safely measure voltages up to 15 kV (DC + AC max) and frequencies up to 50 MHz.

SPECIFICATIONS

Type: Passive Voltage
Bandwidth:50 MHz
Attenuation: 1000x
Input Impedance: 100 M Ohm
Input Capacitance: 3 pF
Output Impedance ohm: 1 M
Risetime: 7 ns
Voltage Max: 15kV / 10 kVdc/a
Compensation: 5 - 50 pF
Accuracy: 0.7
Temp. Coff: ppm/deg C 200

Type: Passive Voltage
Bandwidth:50 MHz
Attenuation: 1000x
Input Impedance: 100 M Ohm
Input Capacitance: 3 pF
Output Impedance ohm: 1 M
Risetime: 7 ns
Voltage Max: 15kV / 10 kVdc/a
Compensation: 5 - 50 pF
Accuracy: 0.7
Temp. Coff: ppm/deg C 200
