AED Lifeline and Lifeline View Automated External Defibrillators, Defibtech


Defibtech AEDs offer industry-leading innovation, simplicity, and elegance.

  • AEDs Withstand Dust and Water Ingress
  • Biphasic Defibrillation Can Resuscitate on the First Shock
  • Upgradable Technology, Clear Voice Prompts, and Cutting-Edge Display Monitors
  • Lightweight, Durable, and User Friendly
  • Units Evaluate Patient Impedance for Proper Pad Connection, Monitors Signal Quality, and Analyzes Patient ECG for Shockable/Non-Shockable Rhythms

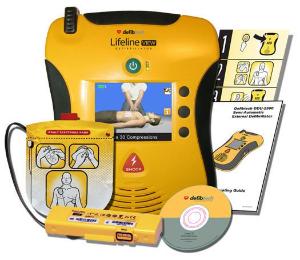

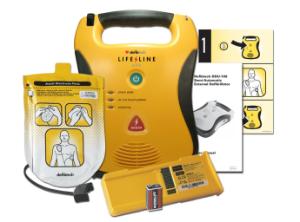

The semi-automatic Defibtech Lifeline AED includes all mission-critical features necessary to provide the most advanced treatment for SCA. Its straightforward design, comfortable handle, and rubberized surfaces make it easy for non-medical personnel to save lives with it. The Lifeline AED has a two-button user interface, clear and calm voice prompts, bright progress lights, and an illuminated status indicator. The Defibtech Lifeline VIEW AED is the only AED with a full-color interactive display that shows step-by-step videos for performing CPR, rescue breathing, and external defibrillation. It also has clear, calm voice prompts and on-screen text prompts, providing three modes of instruction. The Status Screen displays essential information. Maintenance Mode permits the user to perform maintenance-related actions and change unit parameters. The unit has an illuminated status indicator and rubberized surfaces.

Defibtech AEDs feature no lids or moving parts that could delay a rescue. They use biphasic defibrillation, which can, with one shock, resuscitate patients suffering from Sudden Cardiac Arrest (SCA). The Starter Kit and units with a seven or five-year battery allow up to 12 hours of ECG and event data storage (no audio option) or up to 1:40 hours of audio, ECG, and event storage (audio option) on a removable data card. The unit without a battery allows up to 30 hours of ECG and event data storage (no audio option) or up to three hours of audio, ECG, and event storage (audio option) on a removable data card. Actual length of storage depends on card capacity.

Certifications: Compatible with AHA 2010 and ERC 2010; FDA cleared and CE marked. Models DCF-A100-RX-EN, DCF-A110-RX-EN, and the Starter Kit feature IEC60529 Class IP54 splash and dust protection (batter pack installed). Model DCF-A2310RX features IEC60529 Class IP55 waterjet and dust protection (battery pack installed). Tested to U.S. Military “drop and shock” specifications (MIL-STD 810F 516.5 Procedure IV).

Ordering information: AEDs also include battery pack, adult defibrillation pads, a user manual, and operating guide. The Lifeline AED Starter Kit includes the Lifeline AED with 5-year battery pack and prescription, an alarmed wall cabinet, a CPR response kit, and an AED wall sign.





ORDER

Item # Description Capacity Dimensions Battery Life Charge Time Weight Unit Availability Price Quantity
89401-706 Defibtech Lifeline Automated External Defibrillator (AED), with 5-Year Battery and Prescription
125 Shocks or 8 Hours Continuous Operation 22 x 30 x 7 cm (8.5 x 11.8 x 2.7") 5 Years \< 9 Seconds 1.9 kg (4.2 lbs.) Each Retrieving
89401-708 Defibtech Lifeline Automated External Defibrillator (AED), with 7-Year Battery and Prescription
300 Shocks or 16 Hours Continuous Operation 22 x 30 x 7 cm (8.5 x 11.8 x 2.7") 7 Years \< 6 Seconds 2 kg (4.4 lbs.) Each Retrieving
89401-710 Defibtech View Automated External Defibrillator (AED), with Prescription
125 Shocks or 8 Hours Continuous Operation 18.5 x 24 x 5.8 cm (7.3 x 9.5 x 2.3") 4 Years \< 4 Seconds \< 1.4 kg (\< 3 lbs.), with Battery Each Retrieving
89401-712 Defibtech Lifeline AED Starter Kit
125 Shocks or 8 hours Continuous Operation 22 x 30 x 7 cm (8.5 x 11.8 x 2.7") 5 Years \< 9 Seconds 1.9 kg (4.2 lbs.) Each Retrieving

SPECIFICATIONS

Controls Lighted On/Off button, Lighted Shock Button
Test modes Automatic daily, weekly, and monthly circuit tests; System integrity test on battery insertion; Pads preconnected tested daily; Unit and battery pack system test may also be initiated by user; Visual and audible indication of unit status
Type Semi-Automatic External Defibrillator
Waveform Biphasic, Truncated, Exponential
Temperature range Operating: 0 to 50° C (32 to 122° F); Standby: 0 to 50° C (32 to 122° F)
Electrodes Pre-connected, single-use non-polarized, disposable, self-adhesive electrodes with cable and connector
Relative Humidity Operating /Standby: 5–95% (non-condensing)
Altitude –150 to 4500 m (–500 to 15,000 ft.) per MIL-STD-810F 500.4 Procedure II
Energy Adult: 150 Joules, Child/Infant: 50 Joules, Nominal into 50 ohm Load
Vibration Ground (MIL-STD 810F 514..5 Category 20); Helicopter (RTCA/DO-160D, Section 8.8.2, Cat R Zone 2. Curve G); Jet Aircraft (RTCA/DO-160D Section 8. Cat H, Zone2, Curves B & R)
