High waveform capture rate and excellent signal fidelity.
- 100MHz bandwidth
- Real-time sampling rate up to 1GSa/s
- Record length of 14Mpts
- Waveform capture rate up to 60,000 wfs/s
- Supports 256-level intensity grading and color temperature display

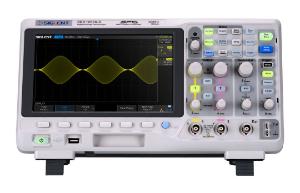

The Super Phosphor Oscilloscope is a 100MHz, 1GSa/s digital oscilloscope with 14Mpts of waveform memory storage that utilizes SIGLENT’s new generation of SPO ("Super Phosphor Oscilloscope") technology. This means high waveform capture rate, 256-level intensity grading, and digital triggering and long memory depth in an economical scope. It also means excellent signal fidelity, with lower background noise than similar competitive products. The SDS1102X includes many other features such as rich intelligent triggering, optional serial bus triggering and decode, History and Sequence function, abundant measurements and math functions.
Most of the commonly used functions are accessible using 10 different one-button operation keys: Auto Setup, Default Setup, Cursor, Measure, Roll, History, Persist, Clear Sweep, Zoom, Print. Multiple powerful triggering modes including serial bus triggering and serial decoding are also optionally available. Waveform history recording and sequential triggering allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities are included, making this sophisticated oscilloscope feature-rich yet excellent value. Built-in math functions include +, - , * , / , FFT , d/dt , ∫dt , √.
The large, eight- inch TFT-LCD display offers 800 x 480 resolution with an impressive waveform capture rate of up to 60,000 wfs/s. And the scope has abundant interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail, Trigger Out. It supports SCPI commands for remote control operation. Thirty-six automatic measurement functions are included, with statistical calculations, gating measurements, math measurements, historical and reference waveform measurements.
See Data manual for more specifications.
Ordering information: Includes USB Cable, Quick Start, Calibration Certificate, Passive Probes (2) , Power Cord, CD (User Manual and EasyScopeX Software).
